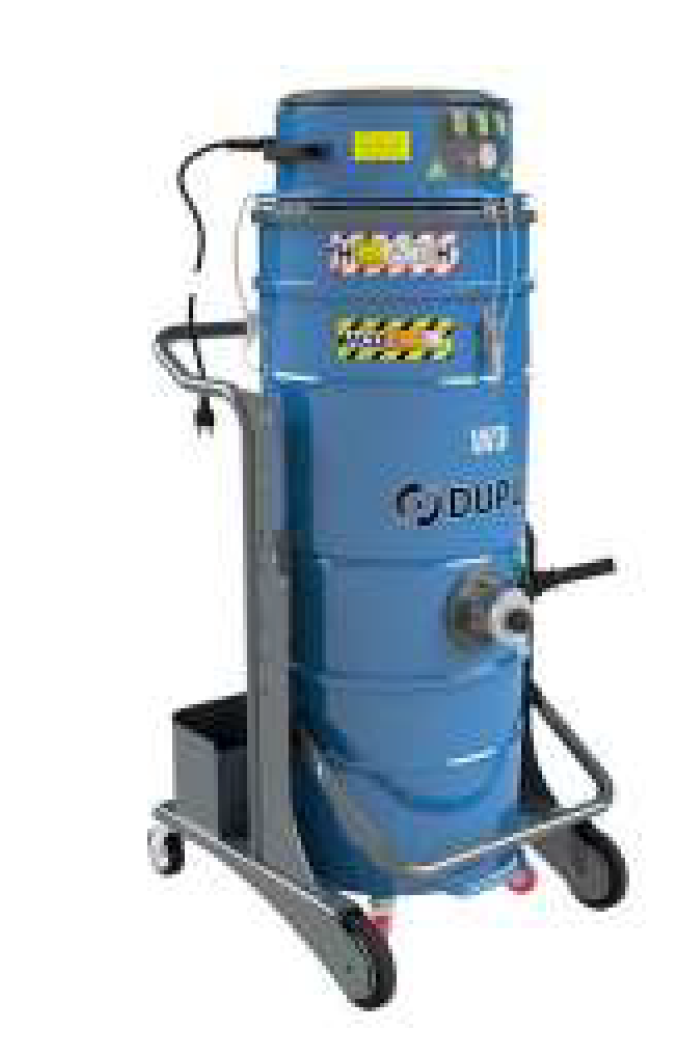

W3 Kompaktowy i przenośny odkurzacz przemysłowy
Kompaktowy i przenośny odkurzacz przemysłowy
Kategoria EX: ACD* - 1/3D - 1/2D
Do użytku w strefie ATEX 20 wew./22 zew.-20 wew./21 zew
Konstrukcja w 100% stalowa.
Nadaje się jednocześnie do zastosowań mokrych, suchych i zapylonych.
Zintegrowany wytrząsacz do czyszczenia filtra.
Odłączany pojemnik ze stali nierdzewnej AISI 304 o szybkim uwalnianiu do modeli ATEX.
Dane techniczne
|
TECHNICAL DATA / DATI TECNICI |
W3 ACD |
W3 EX1/3D |
W3 EX1/2D |
|
||
|
Certificate / Certificato |
|
|
3rd-party certified / Certificato da ente esterno |
|
||
|
Atex zone / Zona Atex |
|
Ord. location |
Haz. location (20 int/22 ext) |
Haz. location (20 int/21 ext) |
||
|
Marking / Marcatura |
|
|
II 1/3D Ex h tb IIIC T80°C (Int) /T95°C (ext) Da/Dc |
II 1/2D Ex h tb IIIC T80°C (Int) /T95°C (ext) Da/Db |
||
|
EX Category / Categoria EX |
|
CE ACD |
CE EX 22 1/3D |
CE EX 21 1/2D |
||
|
Use / Utilizzo |
|
Wet and Dry / Liquidi e Solidi |
|
|||
|
Voltage / Tensione |
V - Hz |
230 - 50/60 1~ |
230 - 50/60 1~ |
230 - 50/60 1~ |
||
|
Power / Potenza |
kW |
3 x 1,1 bypass |
2 x 1,1 by-pass |
2 x 1,1 brushless |
||
|
Water Lift max. / Depressione max. |
mm.H2O |
2.400 |
2.400 |
2250 |
||
|
Air Flow max. / Portata d’aria max. |
M3/h |
540 |
360 |
430 |
||
|
Primary Filter / Filtro primario |
|
Star/Tasche |
Star/Tasche |
Star/Tasche |
||
|
Filter surface - øØ filter / Superficie filtrante - Ø filtro |
Cm2-mm |
20.000-460 |
20.000 - 420 |
20.000 - 420 |
||
|
Filter efficiency / Efficienza filtro |
Cat (BIA) |
M ANT |
M ANT |
M ANT |
||
|
HEPA filter / Filtro HEPA |
|
Standard |
Standard |
Standard |
||
|
Filter surface / Superficie del filtro |
Cm2 |
20.500 |
26.000 |
26.000 |
||
|
Filter grade / Classe filtrante (IEC 60335-2-69) |
|
H14 with 99,995% efficiency at 0,18μm particles / H14 con 99,995% efficienza a 0,18μm |
|
|||
|
Collection tank / Contenitore |
|
Standard painted/ Standard verniciato |
Stainless steel AISI 304 container/ Contenitore in acciaio AISI 304 |
Stainless steel AISI 304 container and chamber / Contenitore e camera in acciaio AISI 304 |
||
|
Tank capacity / Capacità contenitore |
Lt. |
65/100 |
65/100 |
65/100 |
||
|
Noise level / Rumorosità (EN ISO 3744) |
dB(A) |
78 |
76 |
74 |
||
|
Dimensions / Dimensioni |
cm. |
71x62x146h |
71x62x156h |
71x62x156h |
||
|
Weight / Peso |
kg. |
71 |
74 |
74 |
||
